AVP 3000 EVENTS 4:2:2 10Bits HD ENCODER + BISS + DVB-S/2 + L-Band TX out + IF-Out + 1080P SDI +6 SDI Mono Audio + 8/16PSK+ H.264.......
Below is the exact packes included in this sale:1.00 AVP3000 Voyager FAP1303281 1 1.01 AVP3000 Voyager Single AC PSU Chassis (AVP3000/BAS/1AC/A) FAZ1010196/231 1 KDU137911/4 HW 1.02 Basic Modulation Value Pack (AVP/SWO/VP/MOD) FAZ1010196/248 1 FAT1023778 SW 1.03 CE-xA Video Compression Module with analogue input (CE/HWO/CE-xA/A) FAZ1010196/240 1 ROA1286481 HW 1.04 HD Value Pack for CE-Xa Card (AVP/SWO/VP/x/HD) FAZ1010196/269 1 FAT1023799 SW 1.05 Advanced Contribution Value Pack for CE-xA/a Card (AVP/SWO/VP/x/CONT/ADV) FAZ1010196/265 1 FAT1023795 SW1.06 Blanking Plate (CE/HWO/BLNK) FAZ1010119/3 3 SXA2152475/1 HW 1.07 Mains Lead USA FAZ1010129/2 1 RPM1191146/2 HW
The AVP 3000 Voyager is the latest generation of the market leading Voyager product for live news, sports and entertainment, capable of multi-codec, multi-format and multi-channel operation. It is the most flexible and scaleable news gathering system on themarket, reflecting Ericsson’s technology leadership and unique heritage in this segment.
The AVP 3000 Voyager excels in providing maximum flexibility, performance and interoperability while delivering best return on investment to operators and service providers through the widest range of software upgrade paths and expansion options. To make itsimpler to select the most popular options, a set of five AVP 3000 configuration packs are now available at very attractive fixed prices.
The configuration packs provide a hierarchy of functionality starting with the SD DSNG, moving to
HD DSNG, then Events, then Premium Events, and finally World Events pack.
These packs have now been improved, the enhancements include the addition of an ASI I/O module to all packs, dual AC PSU for the top three packs and DVB-S2X support in the World Events pack.
It is possible to order an AVP 3000 with the specific combination of software and hardware options that you require. Also any
hardware or software upgrades can be added once the unit has been delivered, refer to the AVP 3000 data sheet for details.
The most Flexible Integrated EVENTS
Based on two decades of encoder design experience, and a series firsts the AVP 3000 Voyager is a future proof modular platform capable of multi-codec, multi-format and multi-channel operation. It now supports DVB-CID and DVB-S2X.
Highest Compression Performance
The AVP 3000 uses Ericsson’s in house video encoding algorithms and deliver best in class video compression performance from very low bit rate to high bit-rate operation.
The AVP 3000 can provide MPEG-2, MPEG-4 AVC or even JPEG 2000* encoding, 4:2:0 8 bit or 4:2:2 10 bit, SD or HD, even UHDTV is possible (using two AVP units).
* JPEG 2000 encoding requires the addition of a CE-aJ2K encoding module.
The AVP 3000 provides an L-Band or IF satellite output, as well as two IP output ports. It can upgraded to provide ASI output or G.703 output.
Easy to Operate
The AVP 3000 provides a web user interface that has been designed in consultation with our customers to provide a clear, simple and intuitive for the SNG operator. It can also be controlled via a fully functional front panel, which includes a high resolution display for video confidence monitoring.
Reassurance of World Wide Support
Ericsson can provide 24/7 global support.

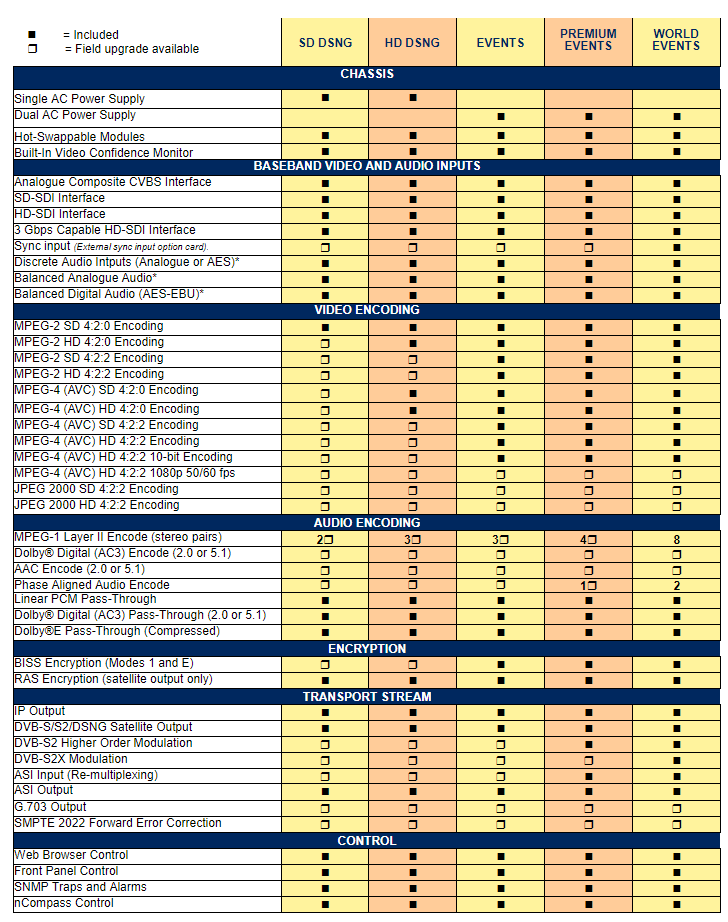

AVP 3000 Voyager Configuration Pack
(AVP3000/CP/SD/DSNG/A FAZ 101 0196/144)
Entry level SNG Encoder capable of:
SD MPEG-2 Encoding
DVB-S/SNG/S2 Satellite Modulation
2 Stereo pairs of MPEG-1 Layer II audioencode.
ASI Output (2 Outputs)
Six slot single PSU chassis (AVP 3000/BAS/1AC)
Integrated redundant IP outputs.
Fully functional front panel control including video confidence monitor.
Voyager web user interface.
Satellite Modulator Output
Integrated DVB-S/S2 Modulator with IF and L-Band outputs.
DVB-DSNG 8 PSK and 16QAM (VOY/SWO/DSNG)
DVB-S2 QPSK and 8PSK (VOY/SWO/DVBS2)
ASI I/O Module (CE/HWO/ASI/2IN2OUT) Encoder Module (CE/HWO/CE-xa)
3G/HD/SD-SDI video input
Composite video input
Embedded (SDI) and AES digital audio input
Analogue audio input
SD MPEG-2 video encoding
2 stereo pairs of MPEG-1 Layer II audio encoding
VANC data extraction an support for generic VANC (SMPTE 2038)
(AVP3000/CP/HD/DSNG/A FAZ 101 0196/145)
As SD DSNG but adds:
HD MPEG-2 Encoding
SD and HD MPEG-4 AVC Encoding
Additional Stereo pair of MPEG-1 Layer II
As above plus:
HD video encoding. (CE/SWO/CE-x/HD)
MPEG-4 AVC video encoding. (CE/SWO/CE-x/H264)
additional stereo pair of MPEG-1 Layer II audio encoding
(giving 3 in total) (CE/SWO/M1L2)
(AVP3000/CP/EVENTS/A FAZ 101 0196/146)
As HD DSNG but adds:
Dual AC PSU chassis
4:2:2 10 bit video encoding.
Six slot Dual PSU chassis (AVP 3000/BAS/2ACFL)
4:2:2 8 or 10 bit video encoding. (CE/SWO/CE-x/H422)
BISS encryption. (CE/SWO/BISS)
(AVP3000/CP/PREM/EV/A FAZ 101 0196/147)
As Events but adds:
DVB-S2 16 APSK and 32 APSK
Ericsson’s Phase Aligned Audio.
DVB-S2 16 APSK and 32 APSK modulation. (VOY/SWO/DVBS2/HOMS)
Ericsson’s Phase Aligned Audio (5.1). (CE/SWO/PAA)
(giving 4 in total) (CE/SWO/M1L2)
(AVP3000/CP/WORLD/EV/A FAZ 101 0196/148)
As Premium Events but adds:
External sync. input
4 more stereo pairs of MPEG-1 Layer IIaudio encode.
Additional Phase Aligned Audio license.
External sync input module (CE/HWO/EXTSYNC)
DVB-S2X support (AVP/SWO/DVBS2X)
4 additional stereo pair of MPEG-1 Layer II audio encoding
(giving 8 in total) ( 5 x CE/SWO/M1L2)
Additional Ericsson’s Phase Aligned Audio (5.1). (CE/SWO/PAA)
