Telairity BE8650 HD SD SDI MPEG2/4 CID Encoder DVB-S2 L-Band Ericsson AVP3000

Name: Telairity BE8650 HD SD SDI MPEG2/4 CID Encoder DVB-S2 L-Band Ericsson AVP3000
SKU: 00032
Price: 15500 USD
Availability: InStock

SKU 00032

$15,500.00

In stock

Quantity:

Product Details

Real-time Encoder with Companion Orion Modulator

Model: BE8650

Compact half-width 1RU system for broadcast quality video encoding
Based on the second-generation fully programmable Telairity-2 video architecture for low-latency, low-power and small-footprint
True real-time encode latency
State-of-the-art H.264/AVC encoding to compress HD signals below 6Mpbs
4:2:2 input and low bitrate 4:2:0 output

The small and powerful real-time high definition (HD) video encoder combining leading edge H.264/AVC video encoding for the highest possible picture quality with a low latency of 250ms. Featuring 4:2:0 distribution encoding, instant on for immediate availability and Telairity's unique two button profile-based front panel control for quick and easy field operation, the reliable BE8600 addresses the critical needs of broadcasters for a platform with the size to go anywhere, low latency, high picture quality and minimized power consumption. Like all Telairity products, it can be easily maintained and upgraded via a simple firmware download.
The Telairity orion modulator is a state-of-the-art modulator designed for either satellite operations, in compliance with DVB-S, DVB-S2 and DVBDSNG standards and requirements about carrier ID defined in ETSI 103 129 or for terrestrial operations in full compliance with the DVB-T/T2 standards. It provides best-in-class performance as measured by a high SNR value, excellent shoulder levels, and low phase noise. Full L-band (950/2150MHz), IF band (50/180MHz) or terrestrial (30 to 900MHz) coverage is achieved with a large, flexible bitrate range of 0.25 to 200Mbps. The Orion offers MPEG-TS input over ASI or IP, signal scrambling (BISS-1, BISS-E) and opportunistic data insertion (MultiProtocol Encapsulation).
The Orion is designed to deal with the physical layer scrambling requirements of ETSI EN 302 307. With appropriate receivers, it can operate in any of three different modes - CCM (Constant Coding Modulation), VCM (Variable Coding Modulation) or Seamless ACM (Adaptive Coding and Modulation with no video interruptions). Orion combines exceptionally flexible input bit rate adaption - with choices between PCR adaption, padding insertion and dummy BB frame insertion - with a high output baud rate (up to 68 MBaud), fully feeding a 72MHz teleport transponder to maximize OPEX. An internal PRBS generator can be used to generate a RF spectrum without any valid signal input.

Compact half-width 1RU system for broadcast quality video encoding
Based on the second-generation fully programmable Telairity-2 video architecture for low-latency, low-power and small-footprint
True real-time encode latency
State-of-the-art H.264/AVC encoding to compress HD signals below 6Mpbs
4:2:2 input and low bitrate 4:2:0 output
VBI, EBU and DVB subtitles, WSS and closed caption
Instant on five-second startup, two-second reset times
Field upgradeable via firmware download
Go anywhere size and power flexibility combined with versatile 4:2:0 encoding capabilities
On board flash memory for fast program upload at boot
Web browser control via Ethernet, encoder/network management systems
Rapid-reset front panel with two-button selection of 4 programmable profiles

BE8650: Companion DVB-S/S2 & DSNG or DVB-T/T2 Orion Modulator for BE8600 Encoder

The Telairity BE8600 is a small and powerful real-time High Definition (HD) video encoder combining leading edge H.264/AVC video encoding for the highest possible picture quality with a low latency of 250ms. Featuring 4:2:0 distribution encoding, “instant on” for immediate availability, and Telairity’s unique “two button” profile-based front panel control for quick and easy field operation, the cost-effective and reliable BE8600 addresses the critical needs of broadcasters for a platform with the size to go anywhere, low latency, high picture quality, and minimized power consumption. Like all Telairity products, it can be easily maintained and upgraded via a simple firmware download.

The Telairity BE8650 Orion Modulator is a state-of-the-art modulator designed for either satellite operations, in compliance with DVB-S, DVB-S2, and DVBDSNG standards and requirements about Carrier ID defined in ETSI 103 129, or for terrestrial operations in full compliance with the DVB-T/T2 standards. It provides best-in-class performance as measured by a high SNR value, excellent shoulder levels, and low phase noise. Full L-Band (950/2150 MHz), IF Band (50/180 MHz), or Terrestrial (30-900 MHz) coverage is achieved with a large, flexible bitrate range of 0.25 to 200 Mbps. The Orion offers MPEG-TS input over ASI or IP, signal scrambling (BISS-1, BISS-E), and opportunistic data insertion (MultiProtocol Encapsulation).

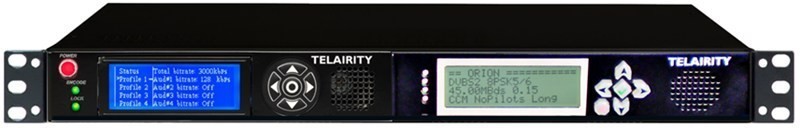

Both the BE8600 and the BE8650 are half-width 1RU units. Packaged together as "buddy systems", they occupy a single full-width 1RU slot.

Download Datasheet

H.264/AVC Video Encoding Features

Can operate either using encoder input or with independent external inputs
Both L-Band and IF-Band satellite frequencies available
DVB-T/T2 version also available

Standards

DVB-S2: EN 302 307; DVB-S: EN 300 421; DVB-DSNG: EN 301 210
DVB-ASI: EN50083-9, ETSI TR 101 891
MPEG-TS: ISO/IEC 13818-1; MPEG-2 PSI Tables (PAT & PMT): EN 300 468
Carrier ID: ETSI 103 129

Control Features

On board Flash memory for fast program upload at boot
Web browser control via Ethernet, also Encoder/Network Management Systems
Rapid-reset Front Panel with “two-button” selection of 4 programmable profiles

Inputs

2 x ASI – BNC connectors, 75Ω
MPEG-TS (188/204 bytes)
Optional RJ-45 connector for SPTS over IP (RTP / UDP) following SMPTE-2022
Flexible bit rate adaptation
PCR adaptation / Padding / Dummy frame
Signal scrambling up to 200 Mbps
BISS (single / multiple programs): modes 0, 1, E

RF Outputs

L-Band: 950 to 2150 MHz / IF-Band: 50 to 180 MHz / TRSTL: 30 to 900 MHz
SNR > 40 dB @ 0 dBm -16 APSK – 30 Mbaud
Shoulders rejection < -45dB @ f/fn = 2
Spurious: < -65 dBc @ 0 dBm in-band / -60 dBc out-of-band
Main RF output, type N, L-Band: 50Ω / IF-Band: 75Ω/
AC: +5 dBm to -30 dBm, step 0.1 dB
L Band DC (BUC Driver): +10 dBm to -40 dBm, step 0.1 dB
Monitoring RF output, type SMA, 50Ω
AC: -15 dBm to -50 dBm, step 0.1 dB
L Band DC (BUC Driver): -10 dBm to -60 dBm, step 0.1 dB

Clock & Synchronization

High Performance Internal Oscillator
Stability: +/- 2.5 ppm over 0 to 70o C; Aging: +/- 0.8 ppm / day, +/- 10 ppm / year
External 10 MHz input for RF synchronization

Opportunistic Push Data Service Insertion

Replace stuffing packets with packets of arbitrary content for free push data services using the same audio/video bandwidth
Upgrade PSI/SI tables
Deliver data or secondary audio/image/video files with sizes up to 100 Mbytes

Control & Monitoring

1 x 10/100/1000 Base-T Ethernet port
SNMP and Web Browser Control & Monitoring
Keyboard and display on the front panel

Modulation

DVB-S (DSNG); DVB-S2

Outer/Inner FEC: S – Reed Solomon/Viterbi; S2 – BCH/LDPC
QPSK: S – 1/2, 2/3, 3/4, 5/6, 7/8; S2 – 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
8PSK: S – 2/3, 5/6, 8/9; S2 – 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
S – 16QAM: 3/4, 7/8; S2 – 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
S2 – 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10
Roll-off values: S – 0.35; S2 – 0.05, 0.10, 0.15, 0.20, 0.25, 0.35
S2 – PL Scrambling codes [0, 2641453]
S2 – Supported DVB modes:
CCM: Constant Coding and Modulation
VCM: Variable Coding and Modulation
Seamless ACM: Adaptive Coding and Modulation
S2 – DVB-S2 Short frames: 16 200; Normal frames: 64 800
S2 – Pilots ON or OFF
S2 – Variable symbol rate from 0.1 to 68 Mbaud, step 1 Baud
